Casa /Prodotti/Macchina per la lavanderia/Hydraulic Corner Forming and Joining Machine

Hydraulic Corner Forming and Joining Machine

1 set
MOQ
negotiable
prezzo
Hydraulic Corner Forming and Joining Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Ac: 380 V.
Misurare: 1800 x 900 x 2000 mm
Elettricità: 50/60Hz
Efficienza del lavoro: Circa 30 per ciotola
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: Star Power
Certificazione: CU, ISO
Numero di modello: HCFR - 500
Termini di pagamento e spedizione
Imballaggi particolari: Imballaggio da mare
Tempi di consegna: 30-50 giorni lavorativi
Termini di pagamento: L/c, t/t
Capacità di alimentazione: 30 set/set all'anno
Descrizione di prodotto
Hydraulic Corner Forming and Joining Machine
Product Overview
The Hydraulic Corner Forming & Riveting Machine is a high - performance industrial equipment designed for precision corner forming and riveting operations in various manufacturing industries. It utilizes hydraulic power to deliver strong and consistent force, ensuring accurate and efficient processing.
This machine is widely applicable in sectors such as automotive, aerospace, furniture, and metal fabrication. It can handle different types of metals, including steel, aluminum, and copper alloys, to form precise corners and create reliable riveted joints. The robust construction with high - quality materials guarantees long - term durability and stable operation even under heavy - duty working conditions.
Equipped with an intuitive control system, operators can easily set parameters like forming pressure, riveting depth, and cycle time, achieving high reproducibility and reducing human error. Additionally, the machine features a compact design with a user - friendly workspace, facilitating easy loading and unloading of workpieces, which enhances overall production efficiency. Whether for small - batch customization or large - scale mass production, this Hydraulic Corner Forming & Riveting Machine provides a reliable solution for achieving high - precision metal forming and joining tasks.
Key Features
  • High-pressure hydraulic system with adjustable force (0-15MPa)
  • Reinforced cast-iron frame with precision linear guides
  • Dual-cylinder synchronous pressing mechanism for uniform pressure
  • Digital control panel with parameter adjustment and program storage
  • Safety features including emergency stop and overload protection
  • Quick-change die sets compatible with standard sink corner profiles
  • ±0.1mm positioning accuracy with 5-15 seconds cycle time per corner
Technical Specifications
Parameter Specification
Hydraulic System Pressure 10 - 16 MPa
Max. Forming Force 50 KN
Max. Riveting Force 45 KN
Forming Angle Range 30° - 150°
Riveting Head Stroke 0 - 100 mm
Worktable Size 600 mm × 500 mm
Power Supply 380V / 50Hz (Customizable)
Motor Power 3 KW
Machine Dimensions 1200 mm × 800 mm × 1800 mm
Weight 800 KG
Control Mode PLC + Touch Screen
Applicable Materials Steel, Aluminum, Copper Alloys, etc.
Product Images

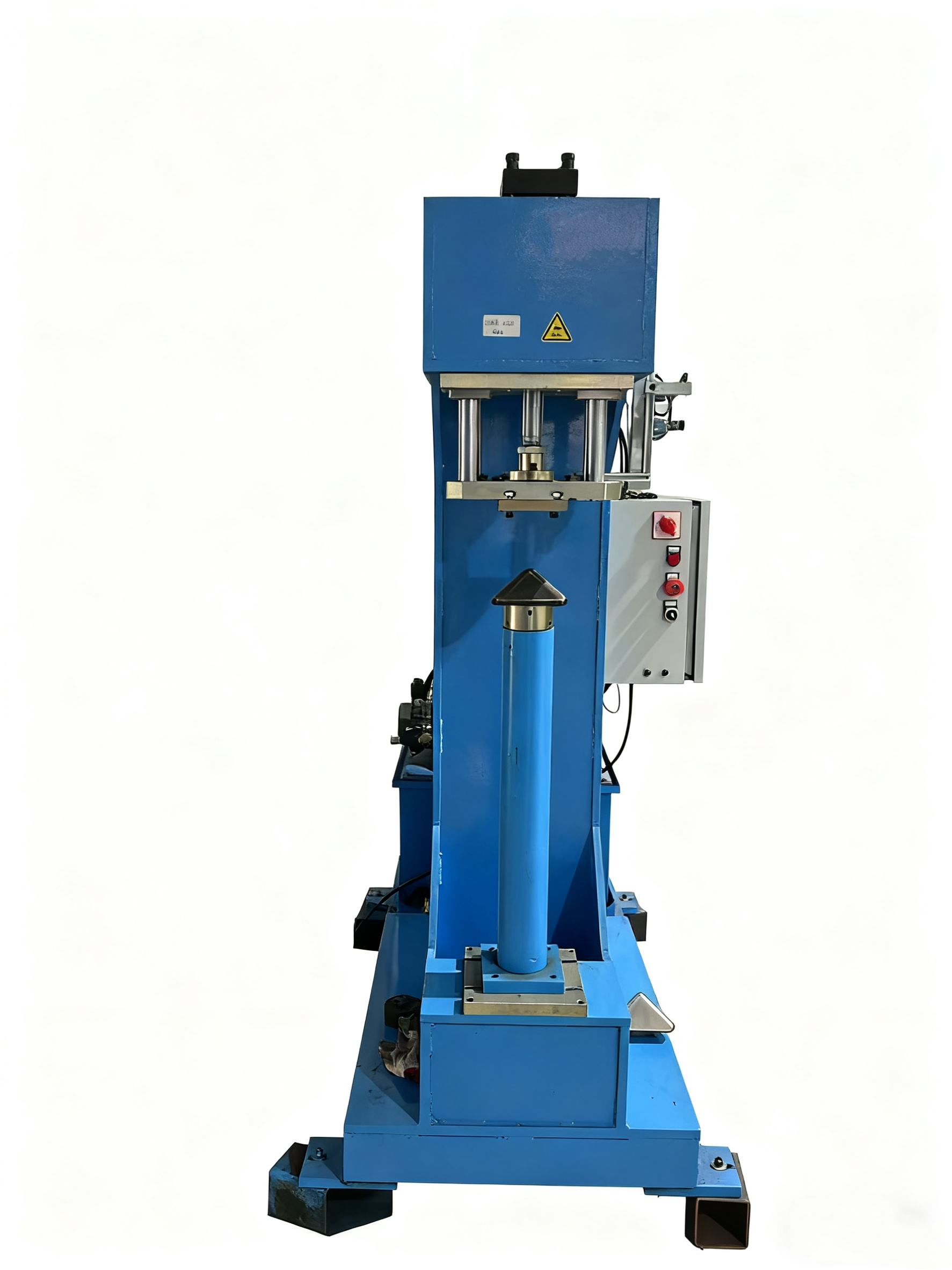

Hydraulic Corner Forming and Joining Machine 0

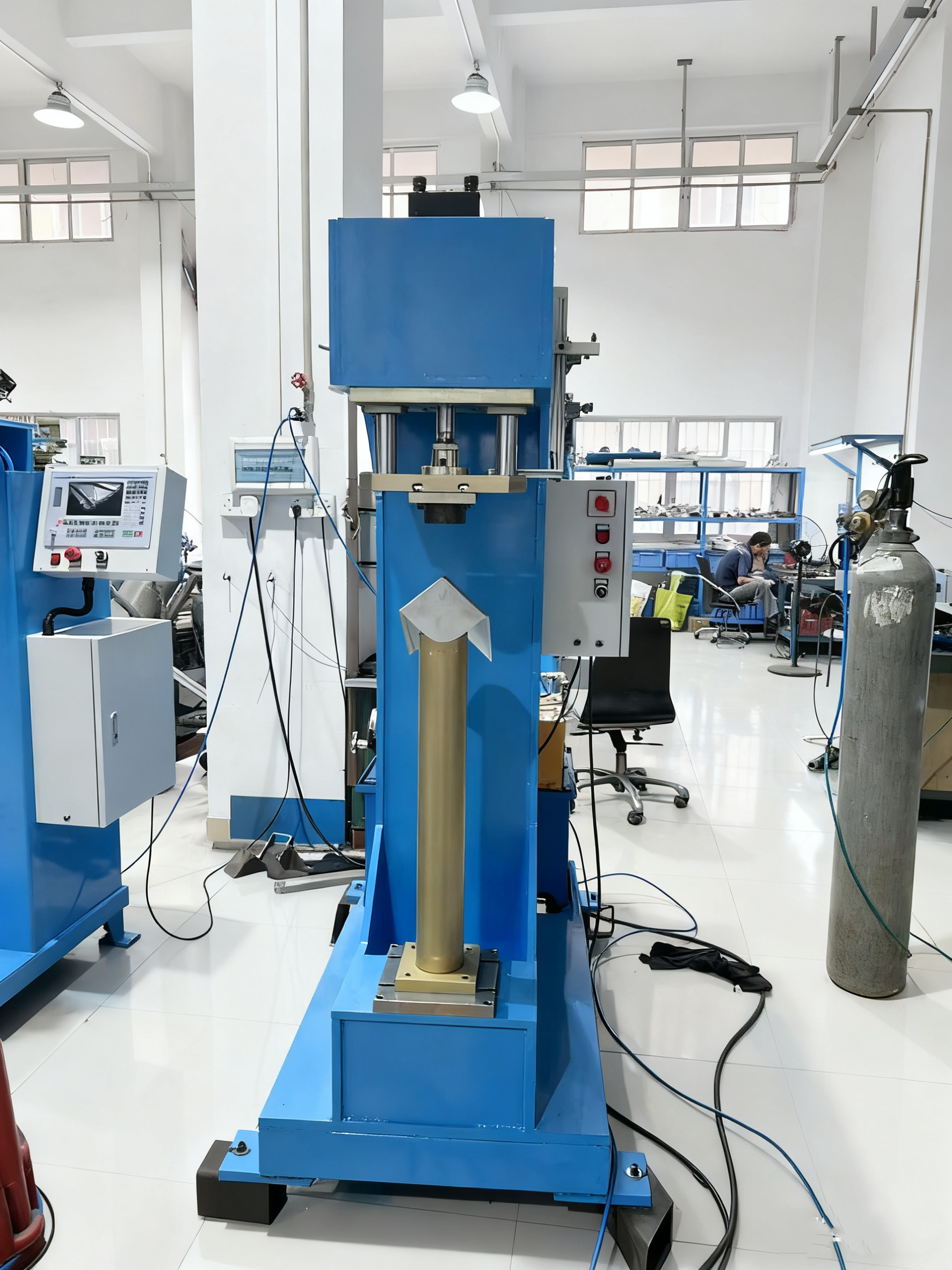

Hydraulic Corner Forming and Joining Machine 1

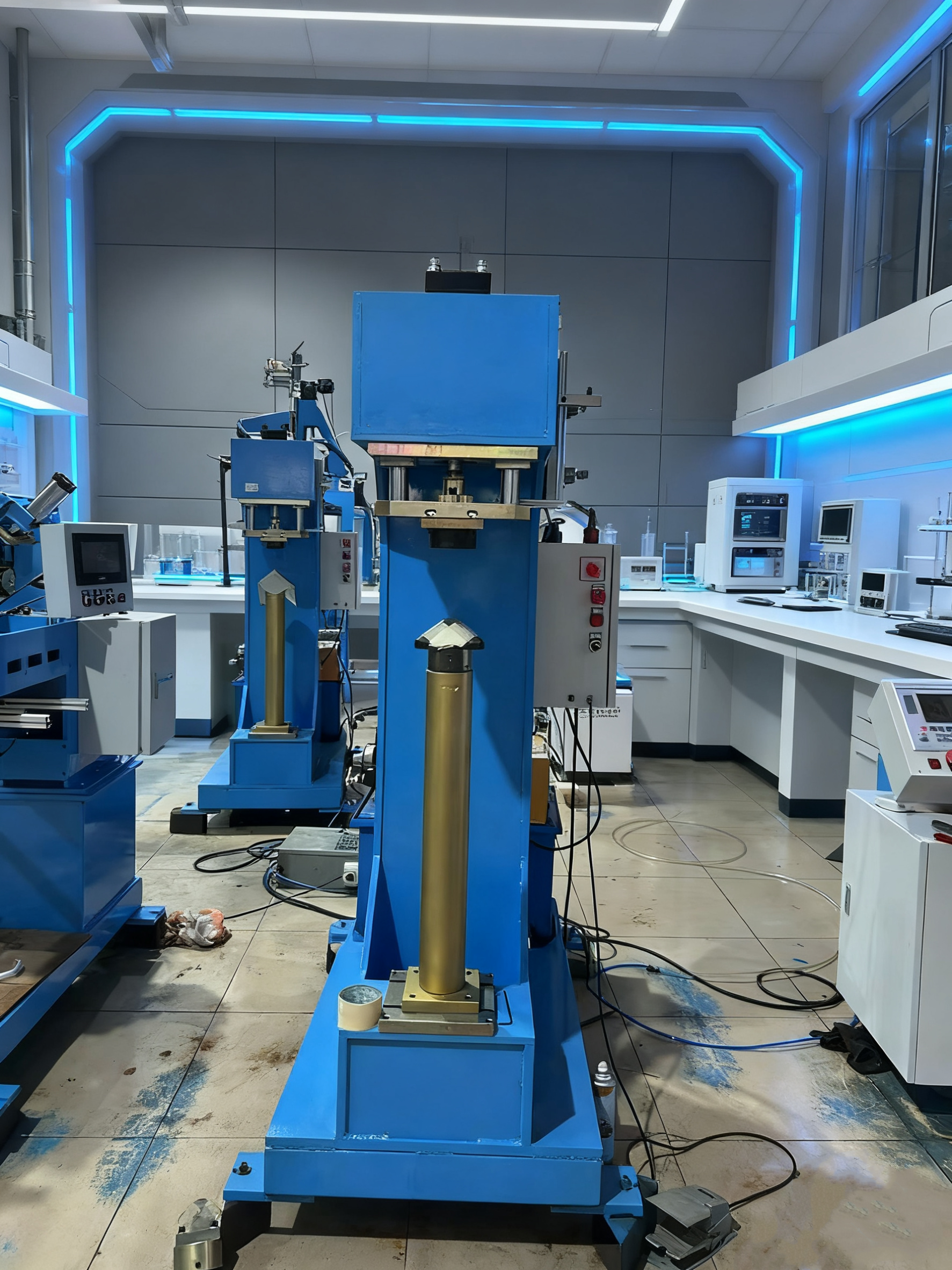

Hydraulic Corner Forming and Joining Machine 2
Production Line

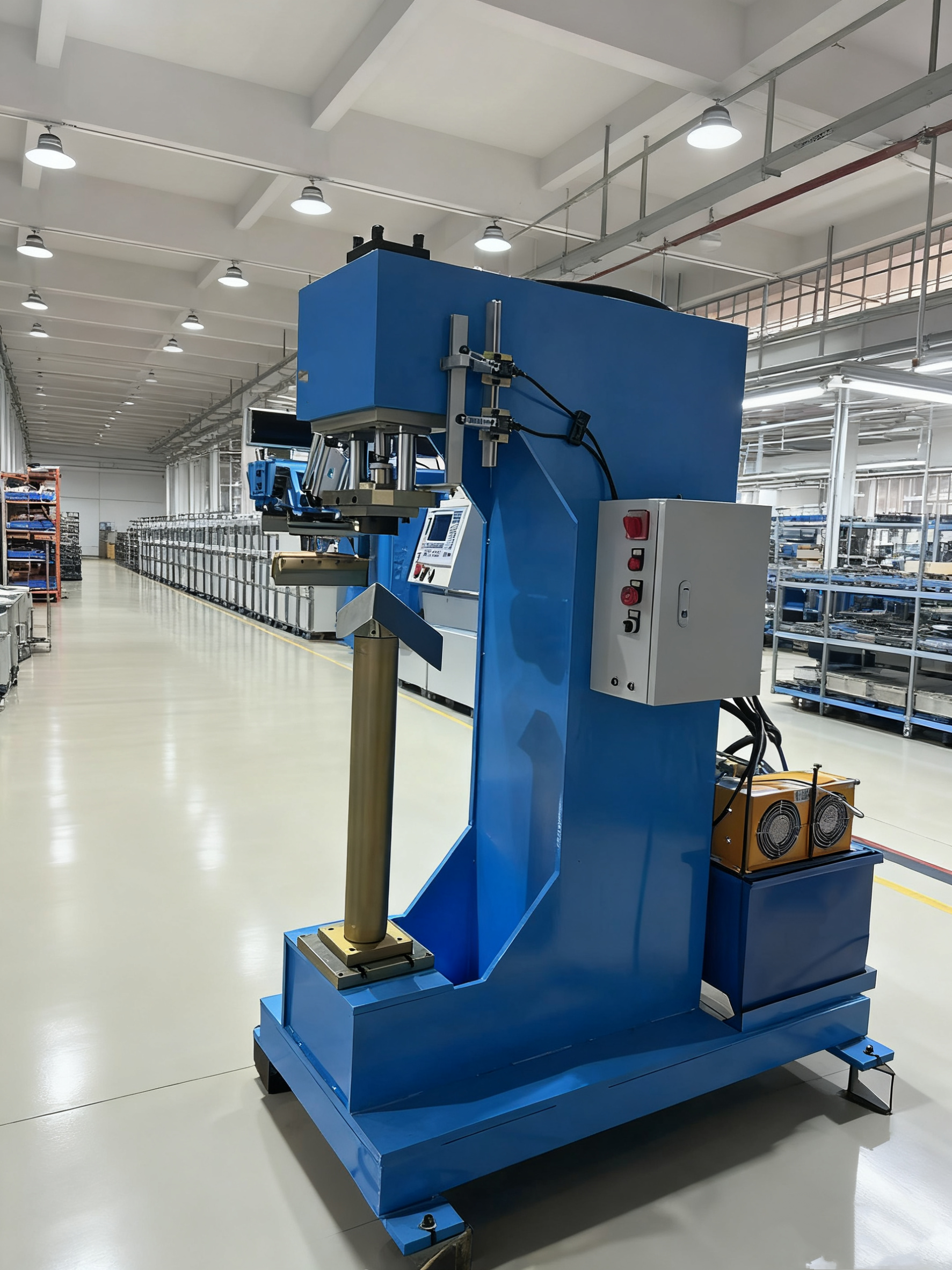

Hydraulic Corner Forming and Joining Machine 3
Certifications
Hydraulic Corner Forming and Joining Machine 4
Delivery
Hydraulic Corner Forming and Joining Machine 5
Manufacturer Information

Founded in 2022, Foshan Star Power Technology Co., Ltd. is located in Foshan, a city renowned for its pottery and martial arts. With a registered capital of 5 million yuan, our company specializes in:

  • Information system integration
  • Machinery and metal product sales
  • Import-export services

In the field of sink production lines, we offer advanced solutions combining high-precision CNC technology with efficient production processes. Our complete sets of equipment can perform operations such as laser cutting, bending, and welding, ensuring high-quality manufacturing while meeting various production needs.
