Heavy-Duty Coil Handler System for 600-3500mm Coils 10000kg Capacity

Heavy-Duty Coil Handler System for 600-3500mm Coils 10000kg Capacity

Brand Name:	Star Power
Model Number:	UCM-PS-HDCHS-10000-XL
MOQ:	1 set
prezzo:	negotiable
Payment Terms:	L/c, t/t
Supply Ability:	30 set/set all'anno

Detail Information

Product Description

Detail Information

Luogo di origine:

Guangdong, Cina

Certificazione:

CU, ISO

Specifiche:

Secondo i lavandini

Imballaggi particolari:

Imballaggio da mare

Evidenziare:

heavy-duty coil handler system

kitchen sink coil handler

600-3500mm sink handler machine

Product Description

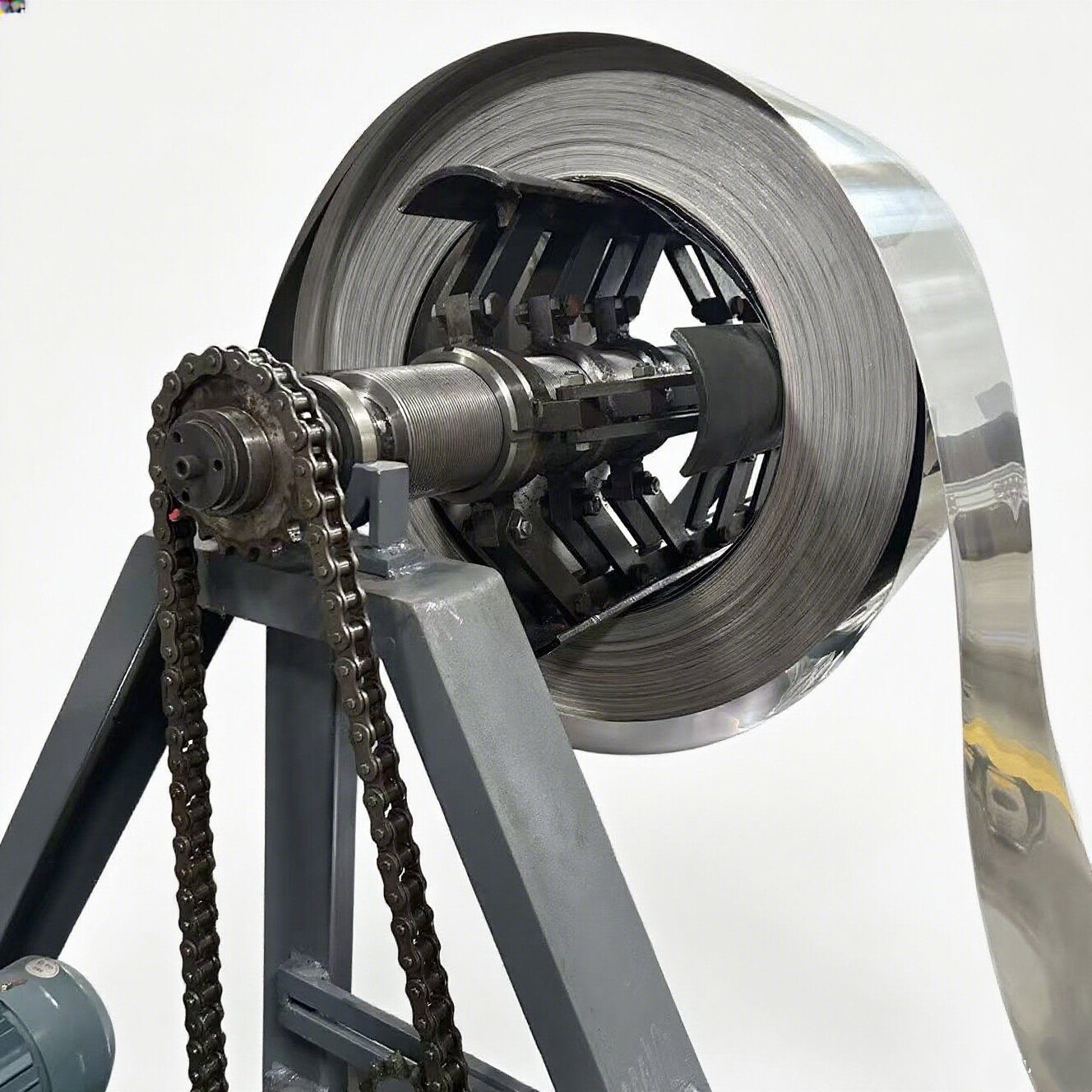

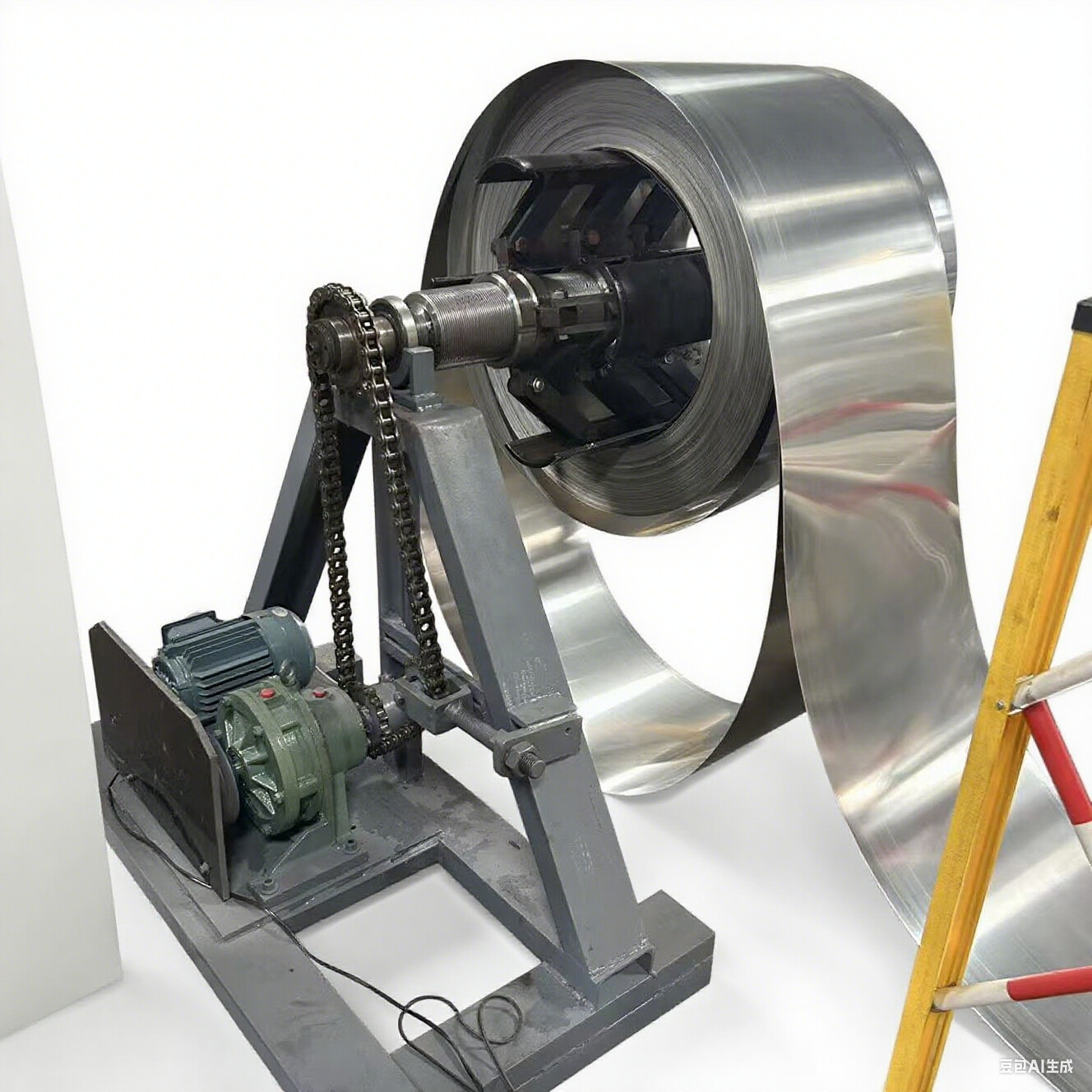

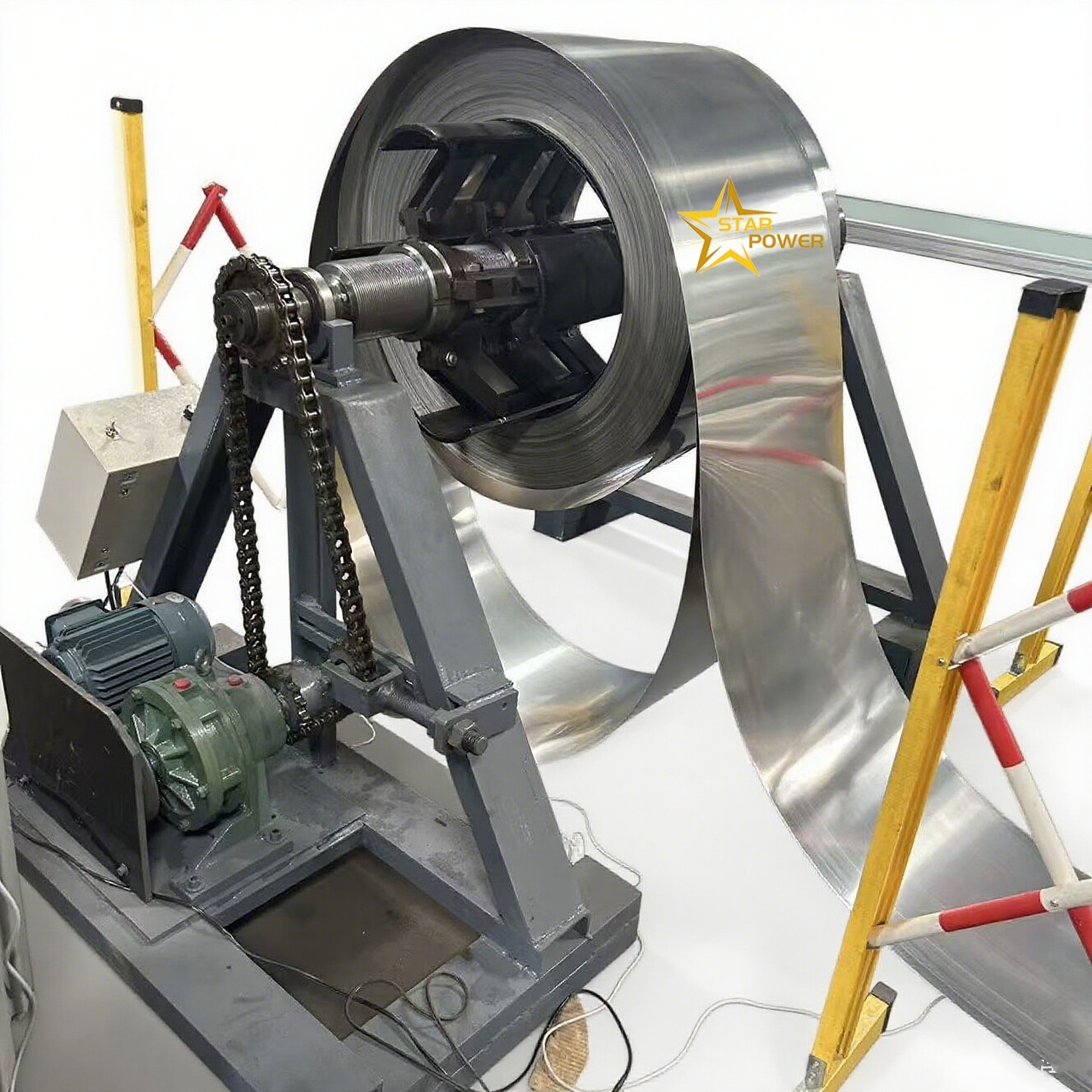

UltraCoil MasterCraft Precision Series Heavy-Duty Coil Handler System

Industrial Precision Oil Spreading & Coating Machine

The UltraCoil MasterCraft Precision Series Heavy-Duty Coil Handler System (UCM-PS-HDCHS-10000-XL) is an advanced industrial solution engineered for the precise handling of large, heavy metal coils in high-volume manufacturing and processing environments. This system combines robust construction with intelligent automation to streamline coil lifting, transportation, rotation, and positioning across steel mills, automotive plants, and metal fabrication facilities.

Featuring adaptive gripping technology and multi-axis movement capabilities, it accommodates diverse coil materials—including carbon steel, stainless steel, and aluminum—with diameters ranging from 600mm to 3,500mm. The integrated PLC control system with a 15-inch touchscreen allows operators to program custom handling sequences, while advanced safety features such as real-time load monitoring and anti-collision sensors ensure secure operation.

Technical Specifications

Parameter	Specification
Maximum Coil Weight	10,000 kg (22,046 lbs)
Coil Diameter Range	600 mm - 3,500 mm (23.6" - 137.8")
Coil Width Range	250 mm - 2,200 mm (9.8" - 86.6")
Maximum Lifting Height	5,500 mm (216.5")
Rotation Capability	360° continuous (0-10 rpm variable speed)
Power Supply	480V, 3-phase, 50/60Hz (multi-voltage options)
Safety Certifications	ISO 13849-1, CE, OSHA 1910.179
